Product Overview
Application

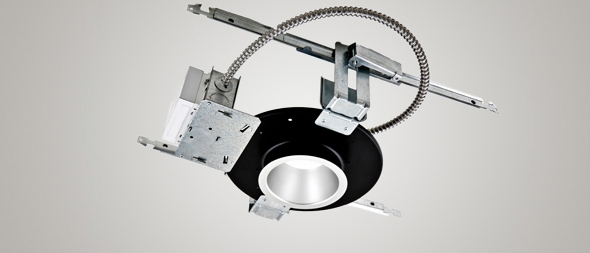

High performance recessed LED luminaire that satisfies a wide range of needs in commercial and architectural applications such as office, educational and retail environments.

Features
  • Unique patent-pending design and advanced thermal engineering.
  • Advanced, solid state (mercury-free) components efficiently deliver lumens at levels comparable to CFL fixtures.
  • High performance Bounding Ray® optics and premium components deliver optimal light control and energy efficiency.
  • Fully functional, integrated family includes recessed downlights, wallwash and emergency lighting.
  • Optional Simply5™ energy management system available
  • EcosTM luminaires are rated for 50,000 hours of life.

Link to Microflange™ trims option information.

Configuration Matrix
Aperture DescriptionIES ViewerSpecSheet
4" Lamps: 1
Watt/Type: 30W LED
Catalog #: ECSR 35/10 4AR
ECOS 4" LED DOWNLIGHT 3500K SEMI-SPECULAR CONE
4" Lamps: 1
Watt/Type: 31.3W LED
Catalog #: ECSR 35/10 4AR LD
ECOS 4" DOWNLIGHT 3500K MATTE DIFFUSE CONE
4" Lamps: 1
Watt/Type: 31.5W LED
Catalog #: ECSR 35/10 4MB
ECOS 4" DOWNLIGHT 3500K BLACK BAFFLE
4" Lamps: 1
Watt/Type: 31.6W LED
Catalog #: ECSR 35/10 4WB
ECOS 4" DOWNLIGHT 3500K WHITE BAFFLE
6" Lamps: 1
Watt/Type: 36.7W LED
Catalog #: ECSR 35/14 6AR LD
ECOS 6" DOWNLIGHT 3500K MATTE-DIFFUSE CONE
6" Lamps: 1
Watt/Type: 37.8W LED
Catalog #: ECSR 35/14 6AR
ECOS 6" LED DOWNLIGHT 3500K SEMI-SPECULAR CONE

Acuity Brands Lighting
