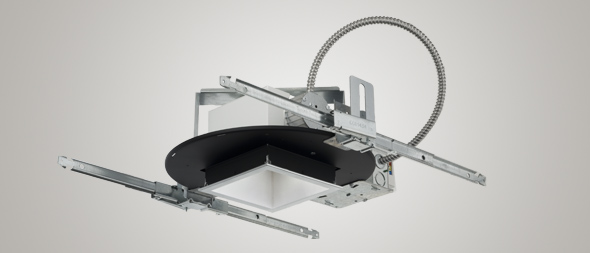

SQAZ - Incand Square Downlight

Product Overview

Application: For general downlight applications that demand optimal color rendering, convenient dimming and a square aperture shape is preferred.

Features

One piece trim eliminates mitered flange corner joints and inside corner gaps.
Patented Bounding Ray™ optics provide high efficiency, and superior lamp shielding.
Optional concentric glass lens available for low-angle shielding.
Patent pending rough-in design allows ¼” adjustments in all directions and up to 5 degrees of rotation allowing post-installation adjustments to ensure consistent trim-to-trim alignment.
After alignment is set, trims lock into place so that alignment is not disturbed by maintenance or re-lamping.

Aperture		Description
4"	Lamps: 1 Watt/Type: 100W INCANDESCENT Catalog #: SQAZ 4AR LD (100A19)	4 INCH SQUARE 100W A-19 INCANDESCENT SMOOTH MATTE DIFFUSE OPEN DOWNLIGHT
4"	Lamps: 1 Watt/Type: 100W INCANDESCENT Catalog #: SQAZ 4DSR LD (100A19)	4 INCH SQUARE 100W A-19 INCANDESCENT STEPPED OPEN DOWNLIGHT
4"	Lamps: 1 Watt/Type: 100W INCANDESCENT Catalog #: SQAZ 4AR LD (100BT15)	4 INCH SQUARE 100W BT15 INCANDESCENT SMOOTH MATTE DIFFUSE OPEN DOWNLIGHT
4"	Lamps: 1 Watt/Type: 100W INCANDESCENT Catalog #: SQAZ 4DSR LD (100BT15)	4 INCH SQUARE 100W BT15 INCANDESCENT STEPPED OPEN DOWNLIGHT
6"	Lamps: 1 Watt/Type: 150W INCANDESCENT Catalog #: SQAZ 6AR LD (150A21)	6 INCH SQUARE INCANDESCENT SMOOTH MATTE DIFFUSE OPEN DOWNLIGHT
6"	Lamps: 1 Watt/Type: 150W INCANDESCENT Catalog #: SQAZ 6DSR LD (150A21)	6 INCH SQUARE INCANDESCENT STEPPED OPEN DOWNLIGHT
6"	Lamps: 1 Watt/Type: 150W INCANDESCENT Catalog #: SQAZ 6AR LD (150BT15)	6 INCH SQUARE INCANDESCENT SMOOTH MATTE DIFFUSE OPEN DOWNLIGHT
6"	Lamps: 1 Watt/Type: 150W INCANDESCENT Catalog #: SQAZ 6DSR LD (150BT15)	6 INCH SQUARE INCANDESCENT STEPPED OPEN DOWNLIGHT
