Suitable for special purpose downlight applications in offices, reception areas, restaurants, showrooms, museums and retail areas where efficient and precise, aimable accent lighting is desired.

• Self-flanged, matte-diffuse high impact polymer finishing trim with a durable, proprietary vapor deposition finish.
• Patented optical design provides lamp before lamp image and smooth transition from top of the reflector to bottom. Patented Bounding RayTM Optical Principle design (U.S. Patent No. 5,800,050).
• One piece trim eliminates mitered flange corners and inside corner gaps.
• Tool-less 0°-35° vertical and 360° horizontal lamp adjustments made with the trim assembly removed for simple focusing.
• Lockable adjustment mechanisms maintain focus during relamping and are visible from below the ceiling with trim assembly removed.

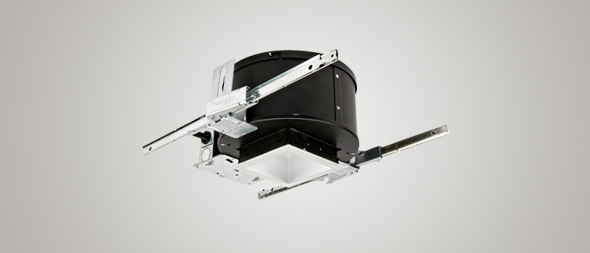

• Rolled steel housing with matte black finish and 16-gauge painted steel mounting/plaster frame accommodates up to 1-1/2" thick ceiling materials.
• Patent-pending adjustable aperture allows 1/4" adjustments in all directions and up to 5° of rotation allowing post-installation adjustments to ensure trim to trim alignment.

Link to Microflange™ trims option information.
