Product Detail

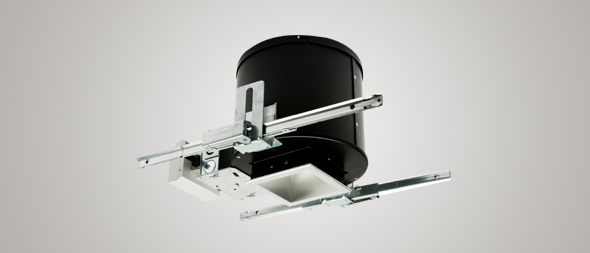

SQPH - Square Vertical PAR Lamp

Product Overview

Application: For general downlighting applications that demand high efficiency and superior optical control and where a square aperture shape is preferred.

Features

Self-flanged, matte-diffuse high impact polymer finishing trim with a durable, proprietary vapor deposition finish.
Patented optical design provides lamp before lamp image and smooth transition from top of the reflector to bottom. Patented Bounding RayTM Optical Principle design (U.S. Patent No. 5,800,050).
One piece trim eliminates mitered flange corners and inside corner gaps.
Patent-pending adjustable aperture allows 1/4" adjustments in all directions and up to 5° of rotation allowing post-installation adjustments to ensure trim to trim alignment.

Link to Microflange™ trims option information.

Configuration Matrix

Aperture		Description
4"	Lamps: 1 Watt/Type: 39W METAL HALIDE PULSE START (BELOW 250W) Catalog #: SQPH P3039MHC 4AR LD	SQUARE 4" DOWNLIGHT FIXTURE WITH PAR30 39W HID LAMP. SMOOTH MATTE DIFFUSE TRIM.
4"	Lamps: 1 Watt/Type: 39W METAL HALIDE PULSE START (BELOW 250W) Catalog #: SQPH P3039MHC 4DSR LD	SQUARE 4" DOWNLIGHT FIXTURE WITH PAR30 39W HID LAMP. STEPPED MATTE DIFFUSE TRIM.
4"	Lamps: 1 Watt/Type: 70W METAL HALIDE PULSE START (BELOW 250W) Catalog #: SQPH P3070MHC 4AR LD	SQUARE 4" DOWNLIGHT FIXTURE WITH PAR30 70W HID LAMP. SMOOTH MATTE DIFFUSE TRIM.
4"	Lamps: 1 Watt/Type: 70W METAL HALIDE PULSE START (BELOW 250W) Catalog #: SQPH P3070MHC 4DSR LD	SQUARE 4" DOWNLIGHT FIXTURE WITH PAR30 70W HID LAMP. STEPPED MATTE DIFFUSE TRIM.
6"	Lamps: 1 Watt/Type: 100W METAL HALIDE PULSE START (BELOW 250W) Catalog #: SQPH P38100MHC 6AR LD	SQUARE 6" DOWNLIGHT FIXTURE WITH A PAR38 100W LAMP. SMOOTH MATTE DIFFUSE REFLECTOR.
6"	Lamps: 1 Watt/Type: 100W METAL HALIDE PULSE START (BELOW 250W) Catalog #: SQPH P38100MHC 6DSR LD	SQUARE 6" DOWNLIGHT FIXTURE WITH A PAR38 100W LAMP. STEPPED MATTE DIFFUSE REFLECTOR.
6"	Lamps: 1 Watt/Type: 150W METAL HALIDE PULSE START (BELOW 250W) Catalog #: SQPH P38150MHC 6AR LD	SQUARE 6" DOWNLIGHT FIXTURE WITH PAR38 150W HID LAMP, SMOOTH MATTE DIFFUSE REFLECTOR.
6"	Lamps: 1 Watt/Type: 150W METAL HALIDE PULSE START (BELOW 250W) Catalog #: SQPH P38150MHC 6DSR LD	SQUARE 6" DOWNLIGHT FIXTURE WITH PAR38 150W HID LAMP, STEPPED MATTE DIFFUSE REFLECTOR.
